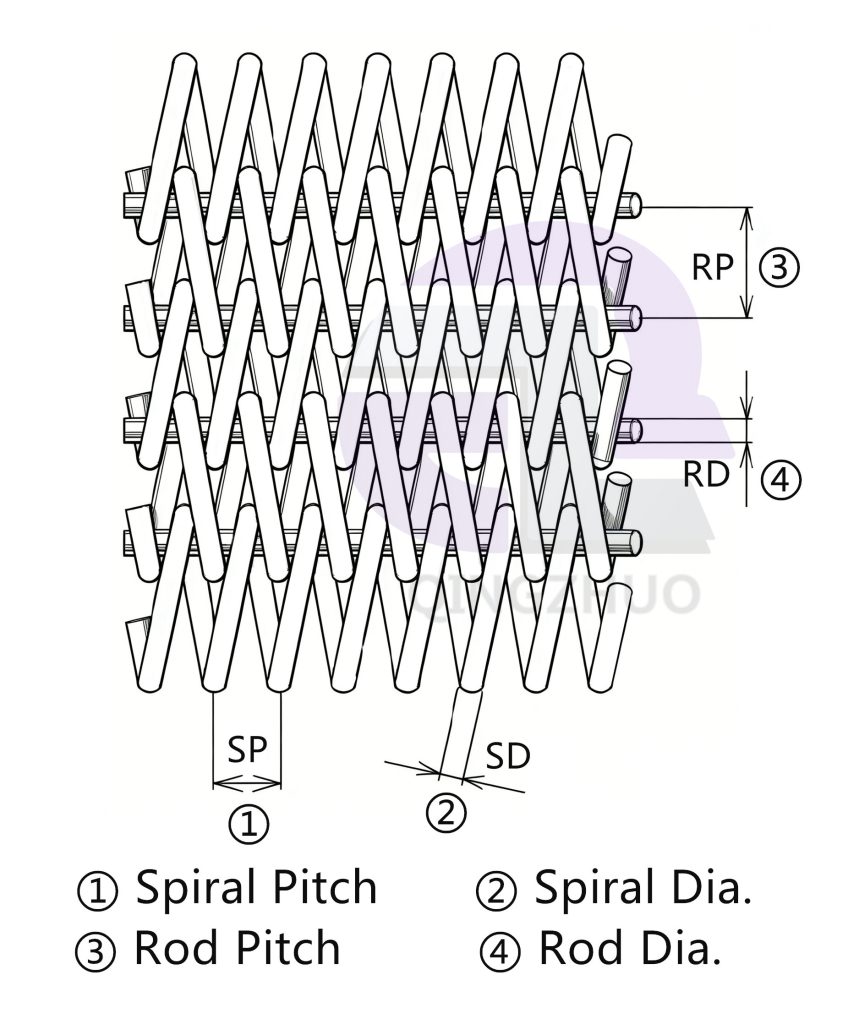

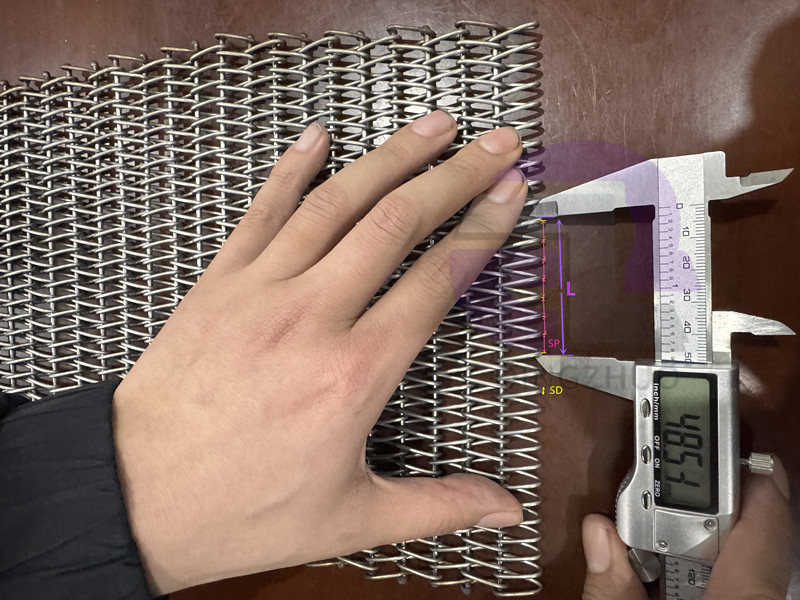

For conveyor belts, we usually only need to know the four key parameters shown in the right-hand diagram: spiral pitch, spiral diameter, rod pitch, and rod diameter. However, what is often overlooked is that the material of the conveyor belt wears down over long-term use. If we only take parameters from a small section, the measurement results will certainly be inaccurate. Therefore, as shown in the upper left-hand picture, we need to measure the entire section. The calculation formula is as follows:

SP=(L-8*SD)/Qty of SP

Alternatively, you can take a photo as described above and send it to us so we can calculate the value.
